Items	Parameter
Product Model	L-RI3.91C	L-RI4.81C	L-RI6.25C
Pixel Pitch	3.91mm	4.81mm	6.25mm
Resolution	128(W)*256(H)	104(W)*208(H)	80(W)*160(H)
Pixel Density	65396 Pixel/㎡	43243 Pixel/㎡	25600 Pixel/㎡
Refresh Frequency	≥1920Hz	≥1920Hz	≥1920Hz
Cabinet Size	500×1000*80mm	500×1000*80mm	500×1000*80mm
Viewing Angle	Horizontal 120° Vertical 110°	Horizontal 120° Vertical 110°	Horizontal 120° Vertical 110°
Optimal Viewing Distance	＞4m	＞5m	＞6m
Power Consumption/ Ave/Max.	193-645W/㎡	157-524W/㎡	120-400W/㎡
Brightness	＞1000	＞1000	＞1000
Lifetime	＞50000hours	＞50000hours	＞50000hours
Weight	17Kg/PC	14Kg/PC	12.5Kg/PC
IP Rate	IP30	IP30	IP30



Mainly used for indoor stage、like fashion shows,expo,weddings,TVStudio,Church,Stage,Shoppingmall,model show、autocar expo etc.

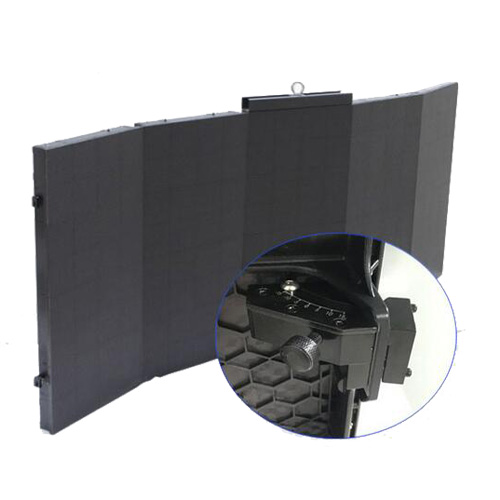

500x1000mm series led panel support for curved installation to meet stage requirements. The smallest diameter is 1.7m. You can install this led screen to some shape, like "S", "o", "L", "T", "C", etc.

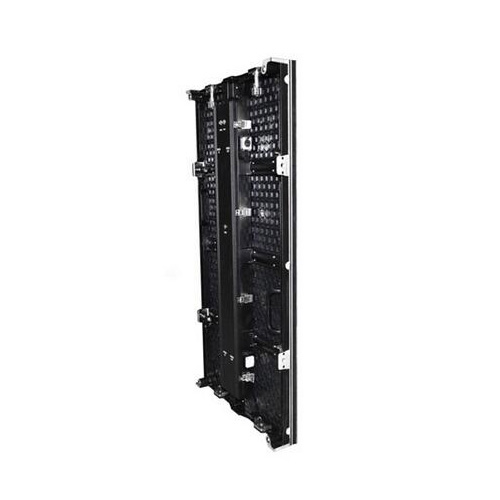

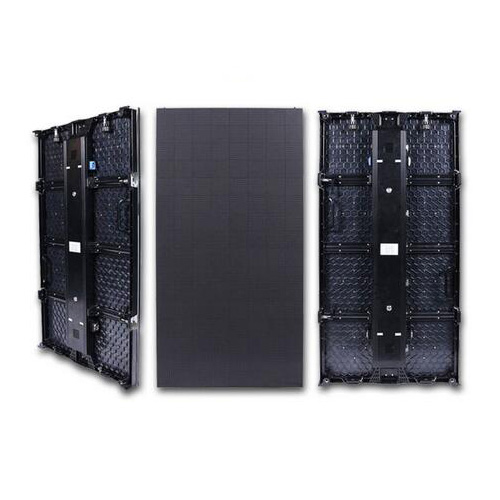

75mm led cabinet depth and 7kg weight is easy for assebly, installation and disassembly.The standard 500x1000mm size can well meet all requirements for some special dimension, especially for stage application.

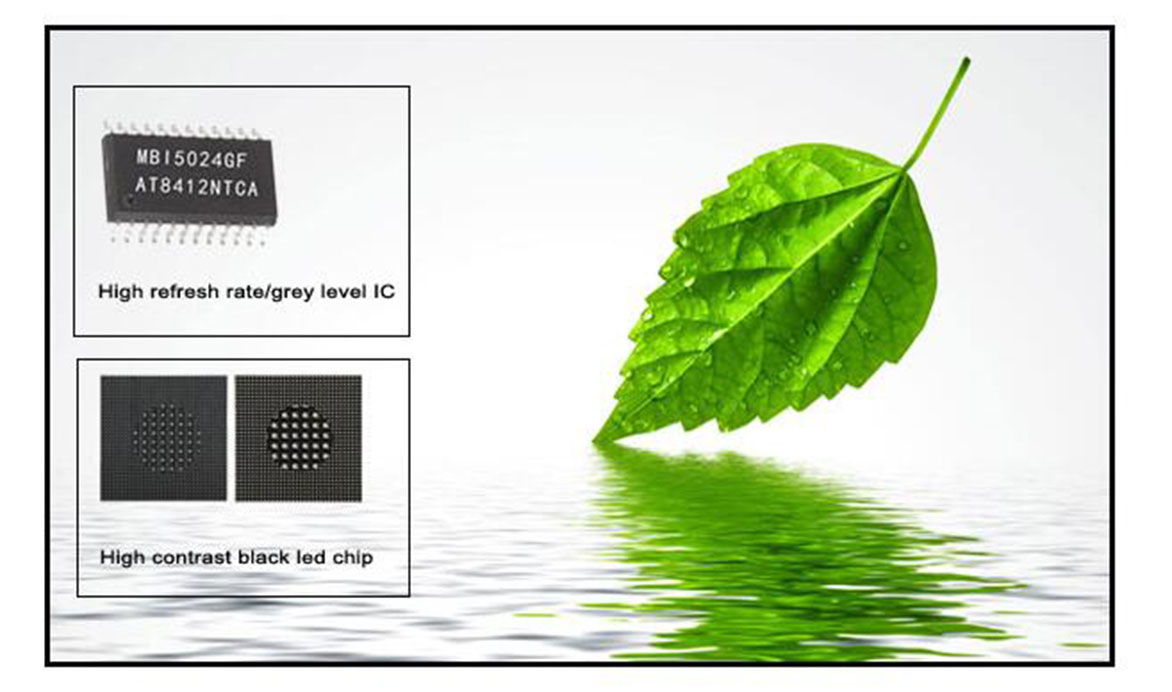

The advanced configuration ensures its high contrast ratio,high refresh rate and high grey scale,which delivery an excellent visual effect.

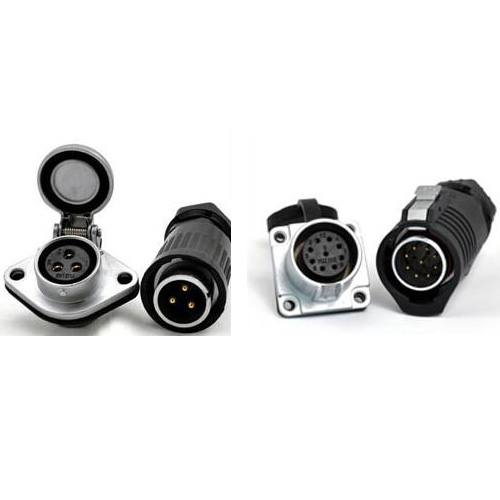

The professionalaviation connectors enable multiple plug and unplug.It ensures the stable and reliable of the screen especially in some important occasions.
