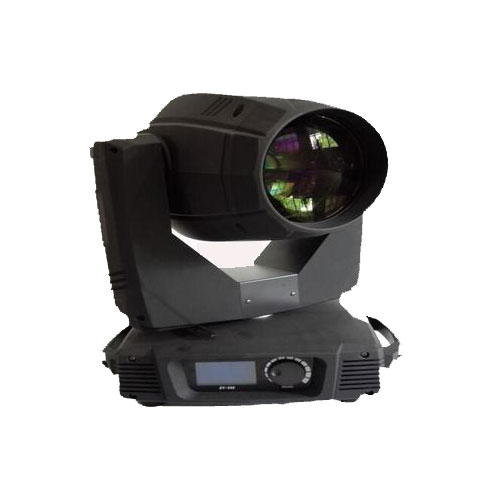

Moving Head L-B330

Product Description

Specification



 Items Parameter
Product Model L-B330
Power 330W
Lamp OSRAM SIRIUS HRI 330W
Number of channels 3 DMX Modes 21/23/34 Channels DMX
Lens anti reflection coated glass lens
Color
Control mode 23 international standard DMX512 control, master-slave mode, auto mode.
Display LCD liquid crystal display
Number of channels 3 DMX Modes 21/23/34 Channels DMX
Color Tempreture 7500K
N.W 23 kgs


Features

1. Voltage: 100V-240V/50-60Hz,
2. Ballast, electronic ballast
3. Color: 6 colors + white with a full or half color function, also has UV insulation film, CMY color mixing system
4. Fixed pattern with 14 fixed pattern plate + blank
5. Rotating pattern with 8 rotating pattern with blank pattern pieces can free swapping
6. The blinking frequency: 0-13 times per second. With random strobe
7. Prism and prism rotation: 3 prism rotation, bidirectional rotation, rotating prism, 16 prism with 1 macro effect.
8. Soft light effect: you can adjust the soft spot angle
9. The light ring: 5% to 100%, with the aperture effect
10. Focusing: linear electron focusing
11. Dimming: 0-100% linear regulator
12. Projection light range: X to 540 degrees Y to 270 degrees, can automatically correct positioning
13. Beam angle: 5 degrees to 27 degrees
14. Flash: Twin strobe (0.5-9 / sec)
15 Motors: 16 ultra quiet motor, two three-phase motors, 16Bit driver
16. Appearance: high-temperature plastic + molding alloy
17. Protection grade: IP20
Other remote control light switch function, lamps, bulbs,
