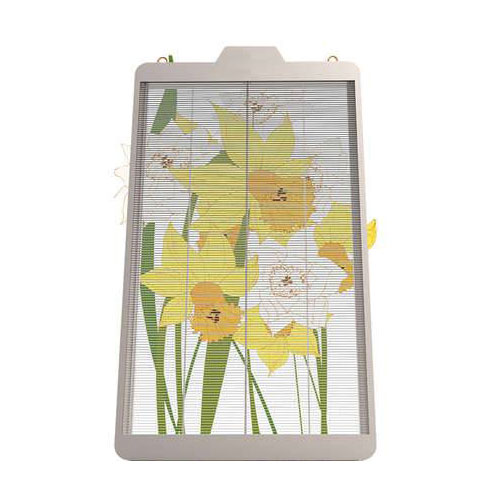

Transparent Display

Product Description

Items	Parameter
Product Model	L-TO3.75	L-TO5	L-TO7.5	L-TO10
Pixel Pitch	3.75mm	5mm	7.5mm	10mm
Scan Model	1/8	1/6	1/4	1/3
Resolution/Cabinet	63' 256(W)192(H) 73' 256(W)240(H)	63' 192(W)192(H) 73' 192(W)240(H)	63' 128(W)160(H) 73' 128(W)200(H)	63' 96(W)128(H) 73' 96(W)160(H)
Pixel Density	40000 Pixel/㎡	30000 Pixel/㎡	16667 Pixel/㎡	10000 Pixel/㎡
Refresh Frequency	≥1920Hz	≥1920Hz

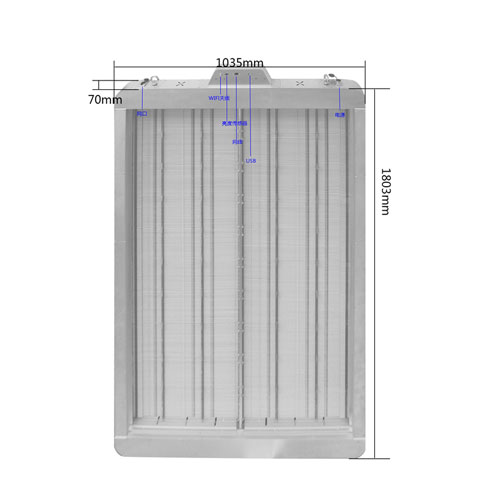

Cabinet Size	63' 14831014mm 73' 18031014mm
Viewing Angle	Horizontal 140° Vertical 140°
Power Consumption	63' 1130/452W/pcs 73' 1413/565W/pcs	63' 942/376W/pc 73' 1178/471W/pc	63' 942/376W/pc 73' 1178/471W/pc	63' 753/300W/pc 73' 942/376W/pc
Transparency Rate	72%	72%	75%	75%
Brightness	5500-6000 CD/㎡
Lifetime	＞50000hours
Weight	11Kg/PC	10Kg/PC	9Kg/PC	8Kg/PC

Here are the features of transparent LED display:

1. High transparency

Up to 80% transparency rate could keep the internal natural lighting and viewing, the SMD are almost invisible from a certain distance.

2. Light weight

PCB board is only 10mm thickness, 14kg/㎡ light weight allow small space for the installation possible, and minimizes the negative impact on the appearance of the buildings

3. Fast installation

Fast lock systems ensure fast installation, saving labor cost

4. High brightness and energy saving

6000nits brightness ensure the perfect visual performance even under direct sunlight, without any cooling system, saves lots of power

5. Easy maintenance

Repairing single SMD without taking of single module or entire panel

6. Stable and reliable

Stability is very import for this product, under the patent of inlaying SMD into PCB, ensure the stability better than other similar products in the market.

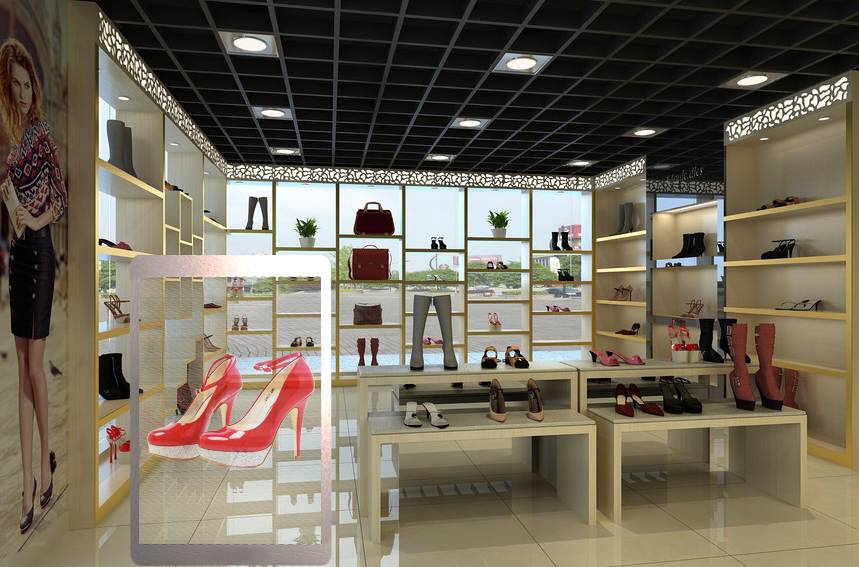

7. Wide applications

Any building with glass wall, for example, bank, shopping mall, theatres, chain stores, hotels, and landmarks etc.
